Impact Wrench LXT?

SKU: DTW1005
United States dollar ($) - USD
  • United States dollar ($) - USD
  • Euro (€) - EUR
  • Armenian dram (AMD) - AMD

Product information

  • Anvil Length: 3/4"
  • Dimensions(LxWxH): 339 x 91 x 291 mm
  • Fastening Capacities: Standard bolt: M12 – M33, High strength bolt: M10 – M24
  • Impacts per Minute (IPM): Max / Hard / Med. / Soft: 0 – 2, 200 / 0 – 1, 800 / 0 – 1, 600 / – min-?
  • Max Fastening Torque: 1, 350 N?m
  • Net weight: 3.5 kg (without battery)
  • NO LOAD SPEED: Max / Hard / Med. / Soft: 0 – 1, 800 / 0 – 1, 000 / 0 – 900 / 0 – 800 min-?
Details...

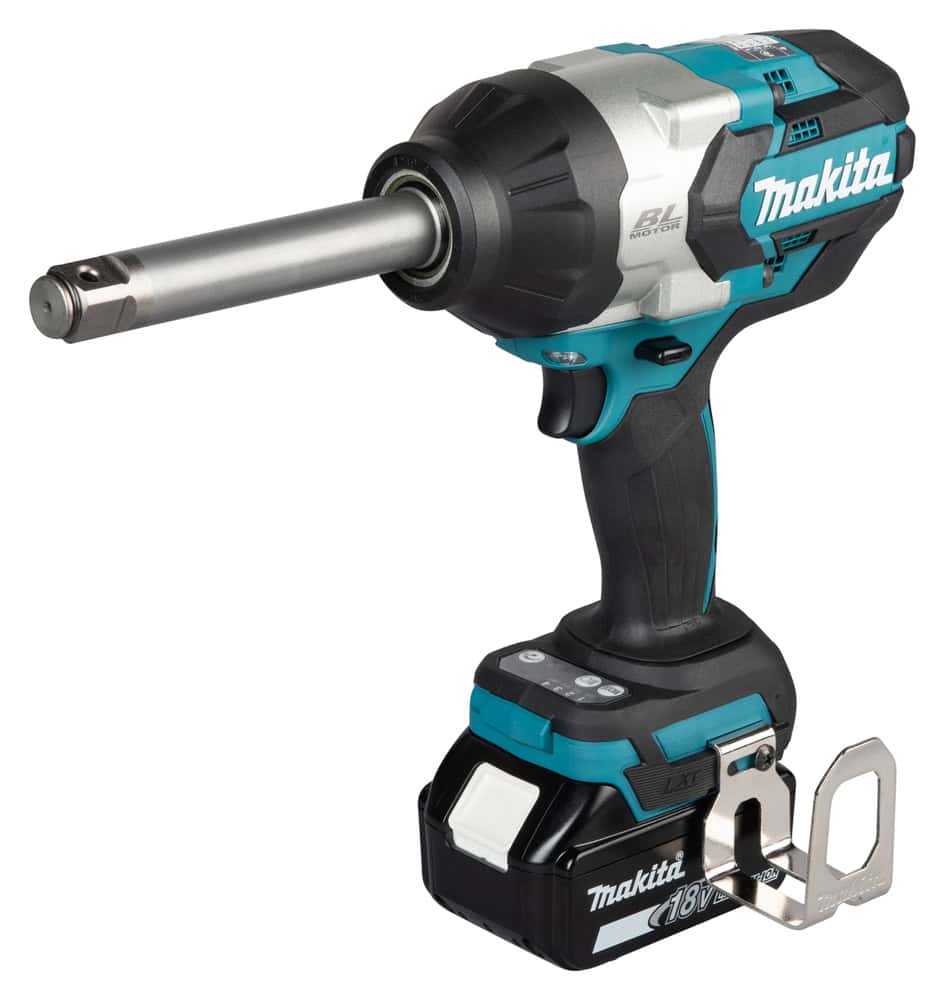

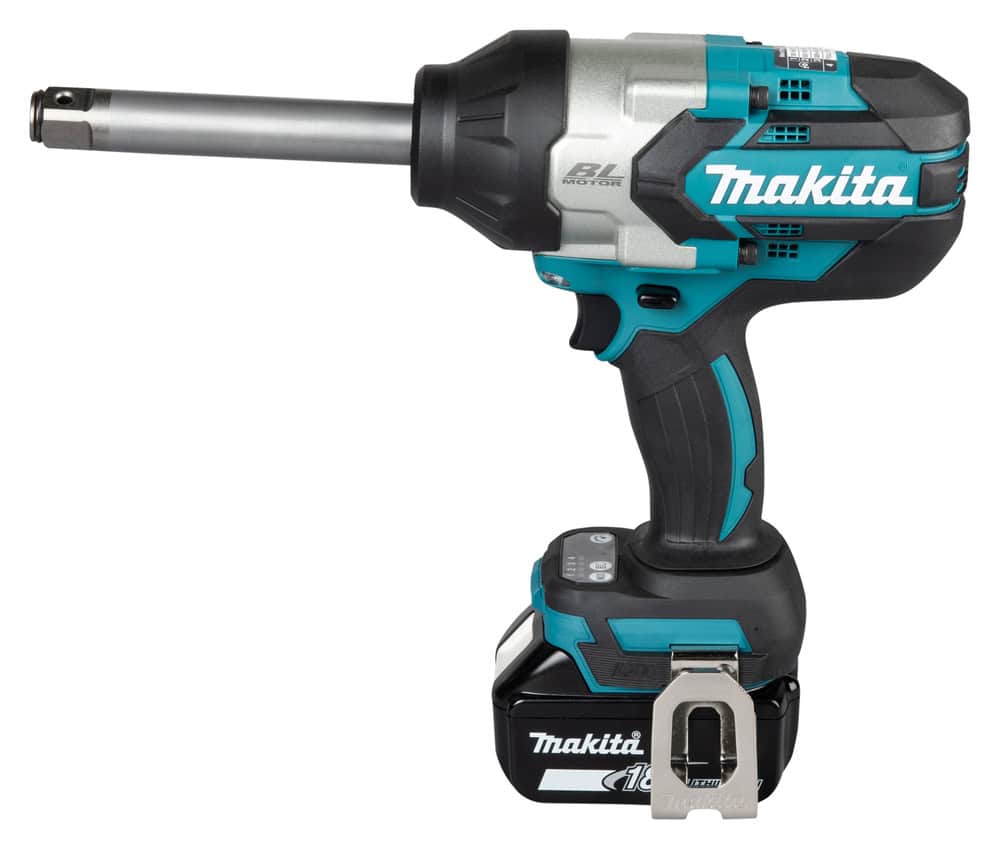

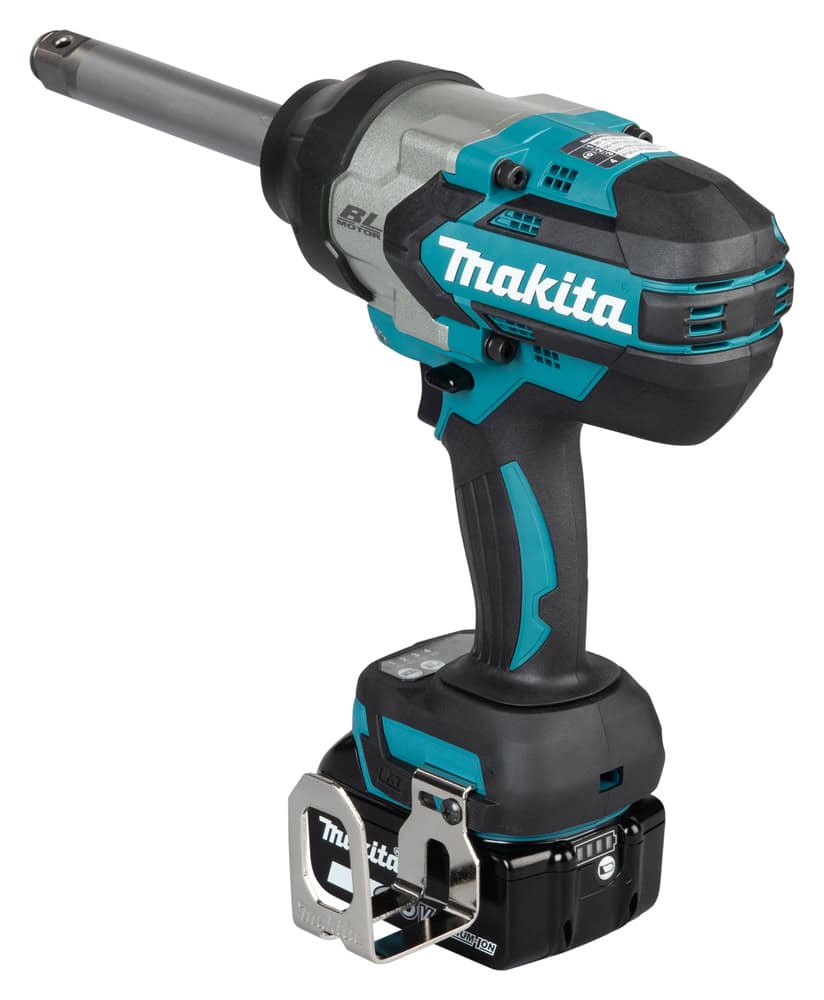

DTW1005 is an Impact Wrench, High power, equipped with a long anvil and powered by a 18V LXT Li-Ion battery.

Category:

Description

Product Description

  • High Torque Performance: Up to 1,700Nm nut-busting torque and 1,350Nm maximum fastening torque for heavy-duty applications.
  • Long Anvil Design: 3/4″ square drive with long anvil, ideal for hard-to-reach spaces and deep socket work.
  • Four Selectable Power Modes: Three auto-stop modes (forward/reverse) for efficient bolt/nut tightening and loosening, plus a max power mode.
  • Variable Speed Trigger: Adjust power easily for different tasks, with four electronic speeds from soft (800 RPM) to max (1,800 RPM).
  • Full Speed Mode Button: Achieves maximum speed with reduced trigger pull for improved productivity.
  • Advanced Brushless Motor (BL): Ensures high efficiency, longer run time, and greater durability.
  • eXtreme Protection Technology (XPT): Enhanced dust and water resistance for reliable operation in harsh jobsite environments.
  • Constant Speed Control: Maintains stable torque throughout the battery cycle (except for reverse/max forward).

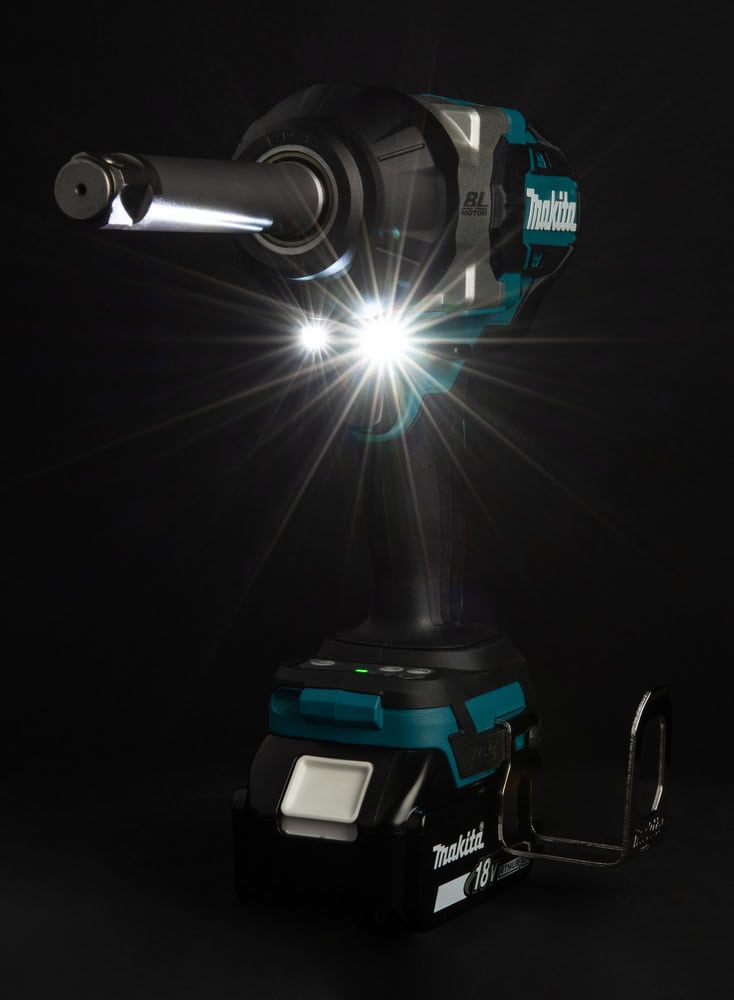

  • Twin Built-in LED Lights: Improves visibility for precise fastening in low-light areas.
  • Ergonomic & Durable Design: Large, two-finger trigger for comfortable continuous operation; robust construction, weighing 3.5 kg (without battery).
  • Accessory Compatibility: Compatible with a wide range of 3/4″ impact sockets and optional extension handle for extra reach.

Additional information

Anvil Length

3/4"

Dimensions(LxWxH)

339 x 91 x 291 mm

Fastening Capacities

Standard bolt: M12 – M33, High strength bolt: M10 – M24

Impacts per Minute (IPM)

Max / Hard / Med. / Soft: 0 – 2, 200 / 0 – 1, 800 / 0 – 1, 600 / – min-?

Max Fastening Torque

1, 350 N?m

Net weight

3.5 kg (without battery)

NO LOAD SPEED

Max / Hard / Med. / Soft: 0 – 1, 800 / 0 – 1, 000 / 0 – 900 / 0 – 800 min-?

NUT-BUSTING TORQUE

1, 700 N?m
