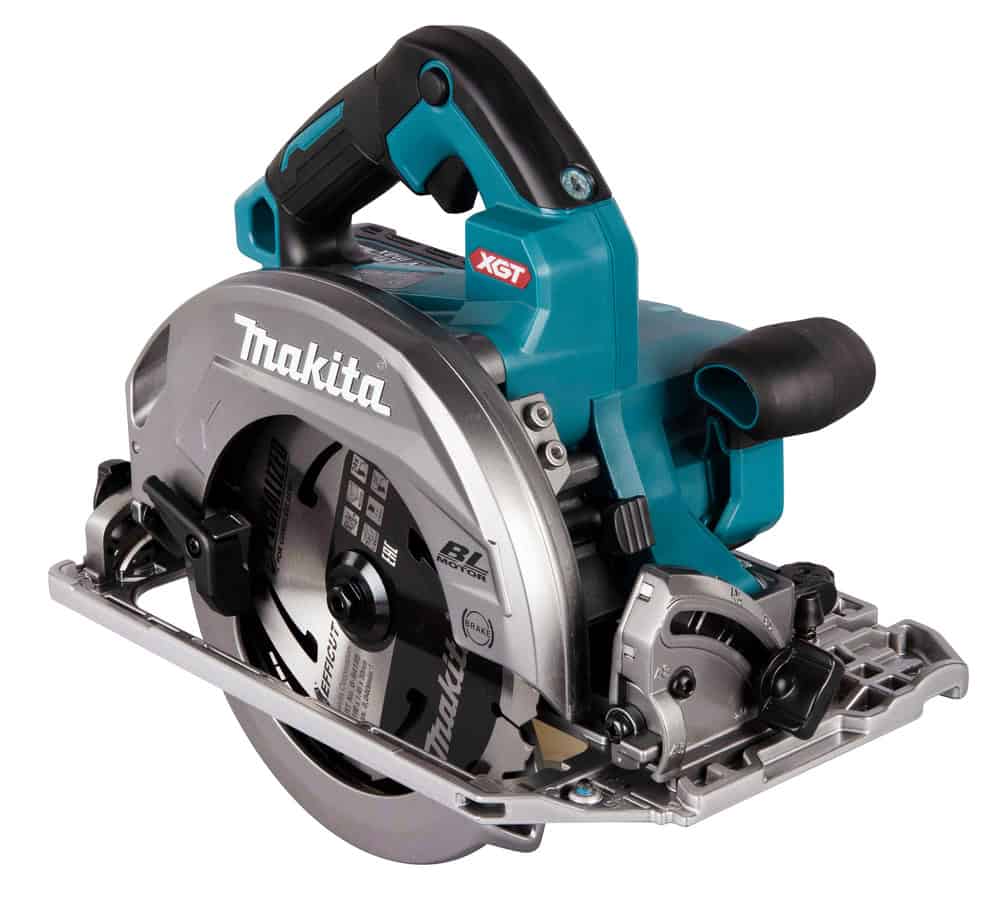

HS004GZ – Circular Saw XGT?

SKU: HS004GZ
United States dollar ($) - USD
  • United States dollar ($) - USD
  • Euro (€) - EUR
  • Armenian dram (AMD) - AMD

Product information

  • AWS READY: Yes
  • MAX. BEVEL RANGE (LEFT): 0 / 56 ?
  • MAX. CUTTING DEPTH AT 45?: 44, 5 mm
  • MAX. CUTTING DEPTH AT 48?: 42 / 41 mm
  • MAX. CUTTING DEPTH AT 90?: 62, 5 mm
  • NO LOAD SPEED: 6 000 min??
  • NOISE UNCERTAINTY (K FACTOR): 3 dB(A)
Details...

Excellent balance and High power circular saw with AWS function

Category:

Description

Product Description

Lightweight & High Power. BL motor delivers 6,000 RPM for fast cutting. Automatic torque Drive Technology (ADT) adjusts cutting speed and torque during cut for optimum performance. Blinks green to indicate that the tool is overloaded ADT indicator lamp. Compatible with guide rail without adapter. Tool only, battery and charger not included.

User Benefits

  • Auto-start Wireless System (AWS) connects to vacuum cleaner with Bluetooth
  • Battery protection circuit protects against overloading, over-discharging and over-heating
  • Brushless maintenance-free and long-life motor
  • Compatible with guide rail without adapter
  • Electric brake for maximum productivity and increased operator safety
  • Magnesium components create lightweight saws that are well-balanced and jobsite tough
  • Twin LED lights with preglow and afterglow functions for better illumination and more accurate work
  • XPT (Extreme Protection Technology) is engineered for improved dust and water resistance for operation in harsh job site conditions

Additional information

AWS READY

Yes

MAX. BEVEL RANGE (LEFT)

0 / 56 ?

MAX. CUTTING DEPTH AT 45?

44, 5 mm

MAX. CUTTING DEPTH AT 48?

42 / 41 mm

MAX. CUTTING DEPTH AT 90?

62, 5 mm

NO LOAD SPEED

6 000 min??

NOISE UNCERTAINTY (K FACTOR)

3 dB(A)

NOMINAL BATTERY VOLTAGE

40 V

PRODUCT DIMENSIONS (L X W X H):

337 x 210 x 290 mm

PRODUCT WEIGHT

4, 4 kg

SOUND POWER LEVEL (LWA)

104 dB(A)

Battery Chemistry (Ni-Cd / Ni-MH / Li-ion)

Li-ion

SOUND PRESSURE LEVEL (LPA)

93 dB(A)

TOOL WEIGHT WITH BATTERY (EPTA)

4, 4 – 4, 7 kg

VIBRATION LEVEL (3 AXES)

? 2, 5 m/s?

VIBRATION UNCERTAINTY (K FACTOR)

1, 5 m/s?

Voltage XGT

Yes

WRENCH

Yes

BATTERY PROTECTION

Yes

BLADE

185 / 190 mm

BORE SIZE (ARBOR DIAMETER)

30 mm

BRUSHLESS MOTOR

Yes

CUTTER

Yes

EAN

88381720021

GUIDE RULE

Yes
