Flat?Head Angle Grinder

SKU: GA056GZ
United States dollar ($) - USD
  • United States dollar ($) - USD
  • Euro (€) - EUR
  • Armenian dram (AMD) - AMD

Product information

  • Cutting Depth: 30 mm
  • Dimensions (LxWxH): 483 x 140 x 136 mm (with BL4040F)
  • Minimum Access Angle: 39?
  • Net weight: 2.5 kg (without battery)
  • NO LOAD SPEED: 3, 000 – 9, 000 min-1
  • Wheel Diameter: 125 mm (5")
Details...

Specifications

40V MAX XGT ? 125mm ? Paddle Switch ? BL Motor ? AFT ?XPT

Cordless flat-head angle grinder powered by a 40Vmax XGT Li-Ion battery.

Category:

Description

Product Description

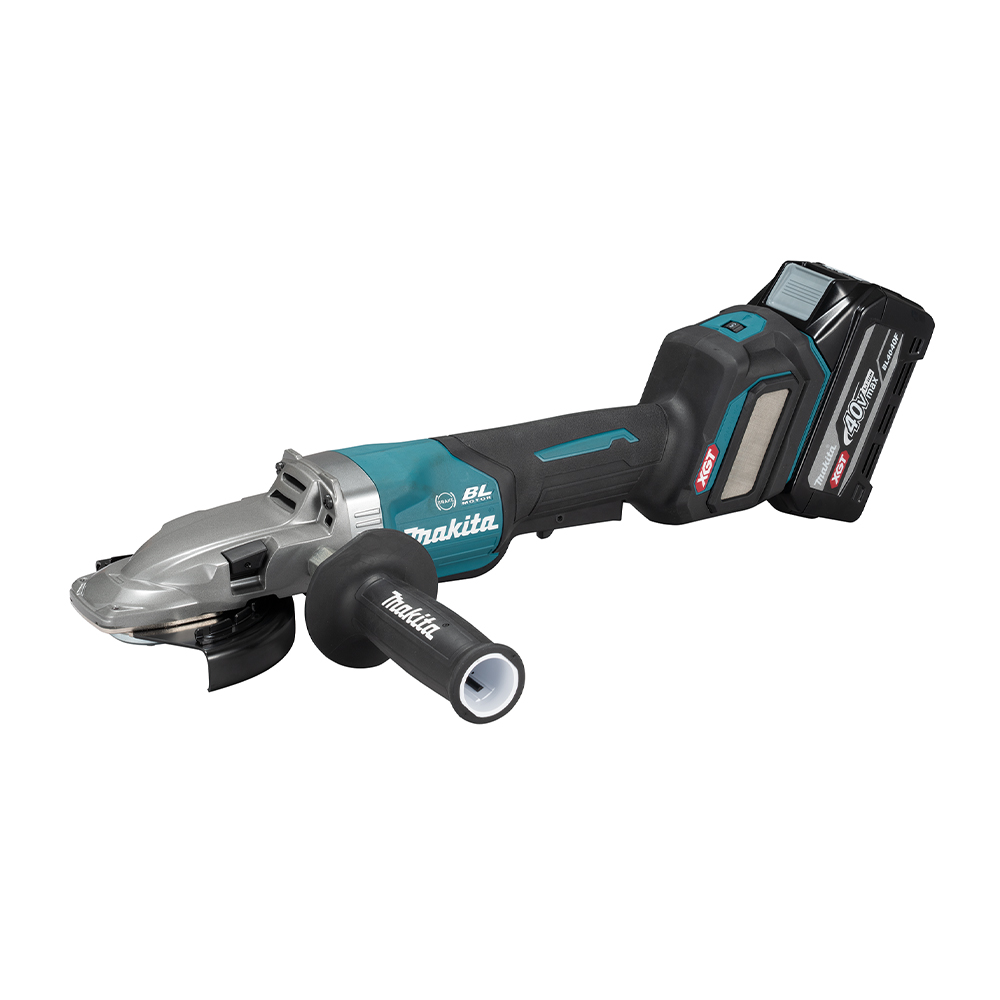

Makita GA056GZ 40V Max XGT Brushless 125mm Flat-Head Angle Grinder is the paddle-switch counterpart to the GA055GZ, specifically designed for safety and ergonomics when working in tight 39? angles.

User Benefits

  • Switch Type😕Paddle switch?(dead-man style) which requires constant pressure to operate, enhancing user safety.
  • No Load Speed: Variable speed from?3,000 to 9,000 RPM.
  • Maximum Grinding Depth: 31 mm.
  • Dimensions: 483 x 140 x 136 mm (when used with a BL4040F battery).
  • Net Weight: 2.5 kg (without battery).
  • Safety Brake: Includes an?electric brake?that stops the wheel almost instantly once the paddle switch is released.
  • Anti-Restart Function: Prevents the tool from starting up if a battery is inserted while the switch is engaged.
  • Kickback Protection: Features?Active Feedback Sensing Technology (AFT), which shuts down the motor if the rotation speed suddenly drops or the wheel jams.
  • Weather Resistance: Built with?Extreme Protection Technology (XPT)?for enhanced dust and water resistance in outdoor or harsh environments.
  • Tool-less Guard: A newly designed wheel cover allows for quick, tool-free adjustments to reach angles as sharp as?39?.

Additional information

Cutting Depth

30 mm

Dimensions (LxWxH)

483 x 140 x 136 mm (with BL4040F)

Minimum Access Angle

39?

Net weight

2.5 kg (without battery)

NO LOAD SPEED

3, 000 – 9, 000 min-1

Wheel Diameter

125 mm (5")
