Cordless Rebar Tying Tool

SKU: TR001G
United States dollar ($) - USD
  • United States dollar ($) - USD
  • Euro (€) - EUR
  • Armenian dram (AMD) - AMD

Product information

  • Applicable Rebar for Tying: D10 x D10 – (D16 x 2) x (D16 x 2)
  • Applicable Tie Wire: Annealed Wire: 16Ga (1.6 mm)
  • Dimensions (L x W x H): 375 x 113 x 331 mm
  • Net weight: 2.6 kg (without battery)
  • Nose Width: 5.6 mm (7/32")
  • Number of Ties: Per Reel: 240 / On a full battery charge (BL4040): 3, 900
  • Tying Speed: 0.7 s
Details...

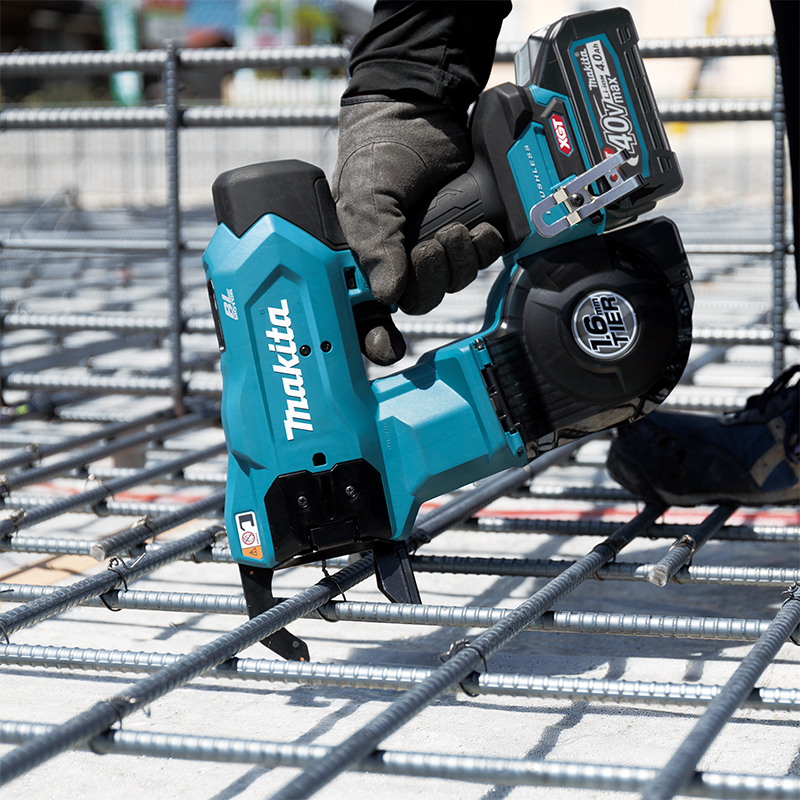

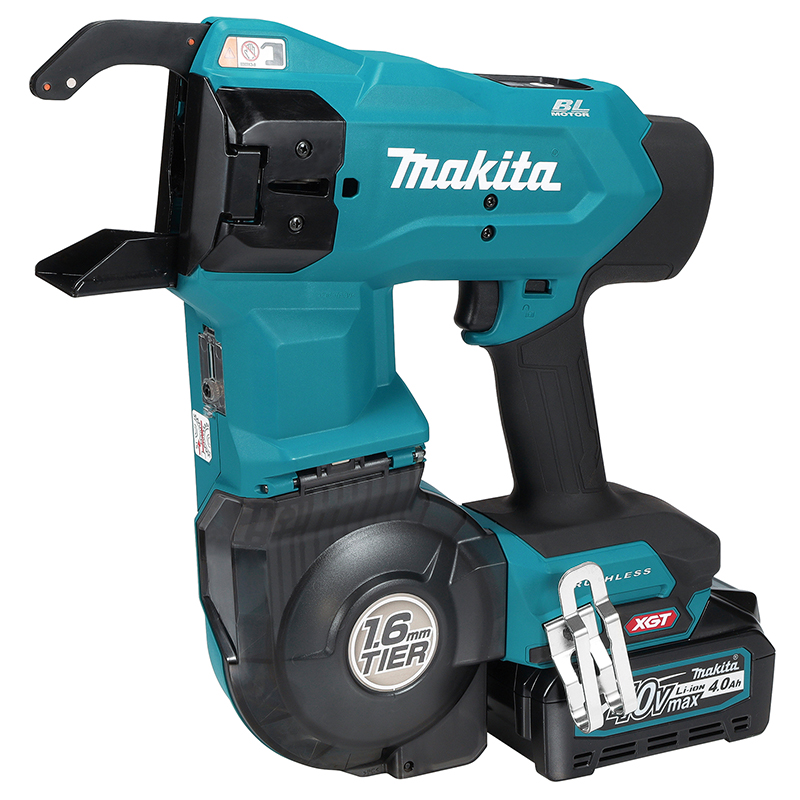

Makita TR001G is a 40V max XGT brushless rebar tying tool designed for superior tying strength and rapid speed on demanding job sites.

Category:

Description

Product Description

The Makita TR001G is a powerful 40V max XGT brushless cordless rebar tying tool that provides high tying strength and speed for various rebar applications. It is engineered for durability and efficiency on construction sites, offering significant performance improvements over older 18V models.

Key Features:

  • High Tying Strength: Delivers significantly higher tying strength (180% for D10 x D10 rebars) compared to 18V models, ensuring secure ties.
  • Rapid Tying Speed: Achieves a fast tying speed of approximately?0.7 seconds per tie, which maximizes job site efficiency.
  • Dual Brushless (BL) Motors: Equipped with separate brushless motors for both the wire twisting and feeding mechanisms, ensuring stable and powerful operation with 1.6mm wire.
  • Wide Rebar Compatibility: Capable of tying a broad range of rebar sizes, from D10 x D10 up to (D16 x 2) x (D16 x 2) combinations.
  • Adjustable Tying Strength: Tying strength is easily adjustable via a?6-stage?digital panel to meet various tension requirements.
  • eXtreme Protection Technology (XPT): Engineered for improved?dust and water resistance, allowing for reliable performance in harsh conditions.
  • Wire Pullback Mechanism: The tool pulls back the wire while holding its tip to ensure tight and secure ties.
  • One-Step Wire Reel Loading: Features an easy loading design, where opening the cover automatically creates the wire feeding mechanism for quick reloads.
  • Trigger Lock Function: Includes a main power switch and a?trigger lock function?to prevent accidental start-up and enhance safety.
  • Ergonomic Design: Designed with an ergonomic rubberized soft grip for added comfort and reduced fatigue during extended use.
  • Optional Extension Handle: An optional accessory handle is available, allowing operators to tie rebars while standing, further reducing physical strain.

Additional information

Applicable Rebar for Tying

D10 x D10 – (D16 x 2) x (D16 x 2)

Applicable Tie Wire

Annealed Wire: 16Ga (1.6 mm)

Dimensions (L x W x H)

375 x 113 x 331 mm

Net weight

2.6 kg (without battery)

Nose Width

5.6 mm (7/32")

Number of Ties

Per Reel: 240 / On a full battery charge (BL4040): 3, 900

Tying Speed

0.7 s

Tying Strength Adjustment

6 Stages

Wire Tail Height

16 mm (5/8")

Reviews

There are no reviews yet.

Be the first to review “Cordless Rebar Tying Tool”

Your email address will not be published. Required fields are marked *

Compare products

Show only difference
Clear
Ratingn/an/an/an/an/a
Pricen/an/an/an/an/a
Weight (kg)n/an/an/an/an/a
Dimensions (cm)-----
Applicable Rebar for TyingD10 x D10 - (D16 x 2) x (D16 x 2)----
Applicable Tie WireAnnealed Wire: 16Ga (1.6 mm)----
Dimensions (L x W x H)375 x 113 x 331 mm531 x 103 x 152 mm (with Vise)---
Net weight2.6 kg (without battery)2.5 kg (without battery)2.5 kg (without battery)4.9 kg (without battery) (with vise)5.3 kg (without battery)
Nose Width5.6 mm (7/32")----
Number of TiesPer Reel: 240 / On a full battery charge (BL4040): 3 | 900----
Tying Speed0.7 s----
Tying Strength Adjustment6 Stages----
Wire Tail Height16 mm (5/8")----
Cutting Depth30 mm30 mm---
Dimensions (LxWxH)483 x 140 x 136 mm (with BL4040F)483 x 140 x 136 mm (with BL4040F)321 x 103 x 285 mm--
Minimum Access Angle39?39?---
NO LOAD SPEED3 | 000 - 9 | 000 min-13 | 000 - 9 | 000 min-1---
Wheel Diameter125 mm (5")125 mm (5")---
LENGTH OF STROKE26 mm----
Max Cutting DiameterPipe: ?220 mm | Wood: 255 mm----
Strokes per minute800 - 2 | 200 min??----
Cutting CapacityDia.: 3 - 16 mm (1/8 - 5/8")----
CUTTING SPEED1.7 seconds----
Maximum Number of Cuts250 Cuts (?16mm Rebar)----
