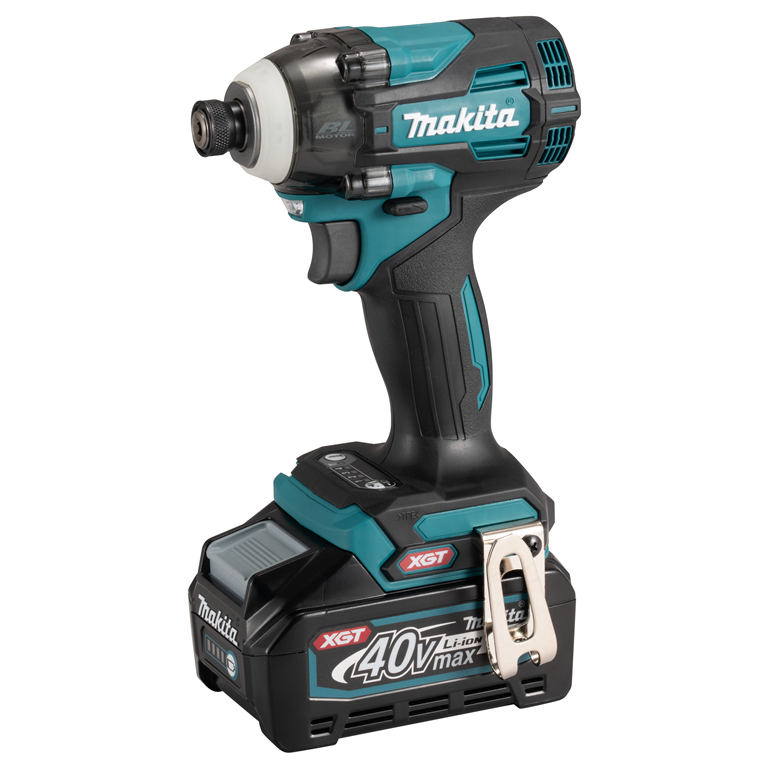

Cordless Impact Driver

SKU: TD004GZ
United States dollar ($) - USD
  • United States dollar ($) - USD
  • Euro (€) - EUR
  • Armenian dram (AMD) - AMD

Product information

  • Capacity: Steel: 22 mm / Wood (Auger bit): 24 mm
  • Dimensions (L x W x H): 136 x 86 x 248 mm
  • Impacts per minute: Max to Soft: 0 – 3, 900 / 0 – 3, 600 / 0 – 3, 100 / 0 – 1, 900 min-1
  • Max Fastening Torque: 230 Nm
  • Net weight: 1.1kg (without battery)
  • NO LOAD SPEED: Max to Soft: 0 – 3, 900 / 0 – 3, 000 / 0 – 2, 100 / 0 – 1, 200 min-1
Details...

Cordless impact driver powered by 40Vmax XGT Li-Ion battery

Category:

Description

Product Description

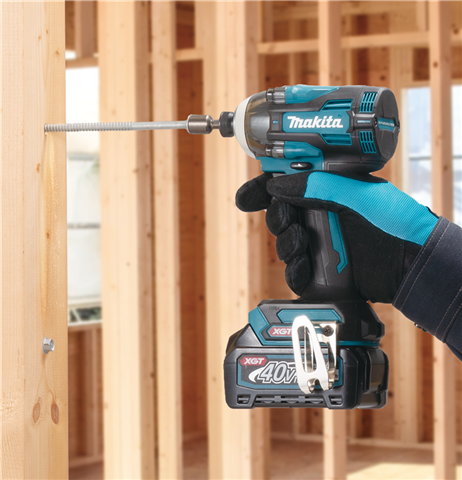

Makita XGT TD004G is a powerful 40V Max cordless impact driver designed for continuous heavy-duty operations.

Key Features:

  • Powerful Performance:?The brushless motor provides excellent performance in continuous heavy-duty operations, offering a max fastening torque of?230 N?m (pp. 1-2). It is ideal for driving screws into tough materials like Laminated Veneer Lumber (LVL).
  • Versatile Modes: It features a simple 4-stage impact power selection (Max/Hard/Med/Soft) and a T-Mode assist function optimized for thin metal fastening applications, which helps prevent stripping.
  • Enhanced Durability:?The tool is equipped with eXtreme Protection Technology (XPT) for increased resistance to dust and water.
  • Compact and Ergonomic Design: The driver has a short overall length of 136 mm (5-3/8″) and an ergonomically designed soft grip for comfortable use.
  • User Controls: It includes a variable speed trigger for precise control, a reversing switch, and twin LED lights with pre-glow and afterglow functions to illuminate the work area.

Additional information

Capacity

Steel: 22 mm / Wood (Auger bit): 24 mm

Dimensions (L x W x H)

136 x 86 x 248 mm

Impacts per minute

Max to Soft: 0 – 3, 900 / 0 – 3, 600 / 0 – 3, 100 / 0 – 1, 900 min-1

Max Fastening Torque

230 Nm

Net weight

1.1kg (without battery)

NO LOAD SPEED

Max to Soft: 0 – 3, 900 / 0 – 3, 000 / 0 – 2, 100 / 0 – 1, 200 min-1
