Angle Impact Wrench

SKU: DTL301Z
United States dollar ($) - USD
  • United States dollar ($) - USD
  • Euro (€) - EUR
  • Armenian dram (AMD) - AMD

Product information

  • Capacity: Standard Bolt: M10 – M20 / High Strength Bolt: M10 – M16
  • Dimensions (L x W x H): 396 – 414 x 80 x 86 – 92 mm
  • Head Height: 81.0 mm (3-3/16")
  • Impacts per minute: Hard / Med. / Soft: 0 – 4, 000 / 0 – 2, 800 / 0 – 1, 800 min-1
  • Max Fastening Torque: 310 – 340 N?m
  • Net weight: 1.42 kg (without battery)
  • NO LOAD SPEED: Hard / Med. / Soft: 0 – 3, 200 / 0 – 1, 500 / 0 – 1, 000 min-1
Details...

Cordless Angle Impact Wrench powered by 18V LXT? Li-Ion battery

Category:

Description

Product Description

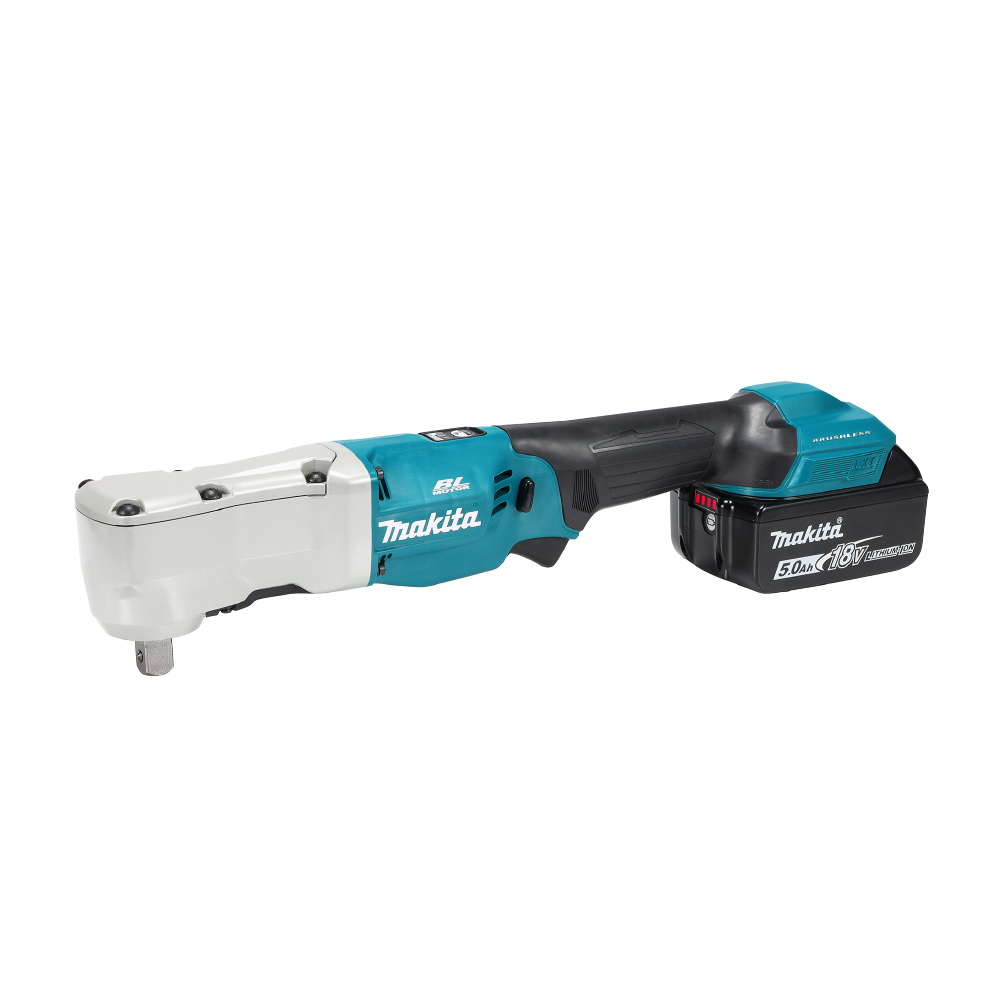

Makita DTL301Z?is an ergonomic and powerful angle impact wrench with a 1/2″ square drive and a pin detent anvil. It features a brushless motor for efficiency and durability and is part of the extensive 18V LXT battery platform.

User Benefits

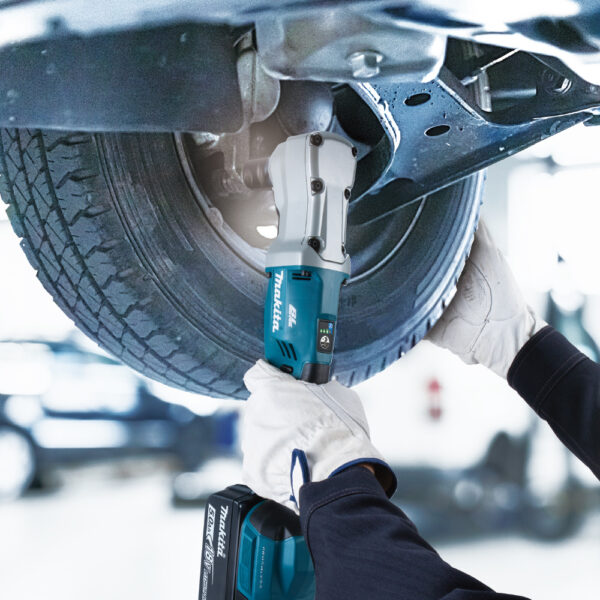

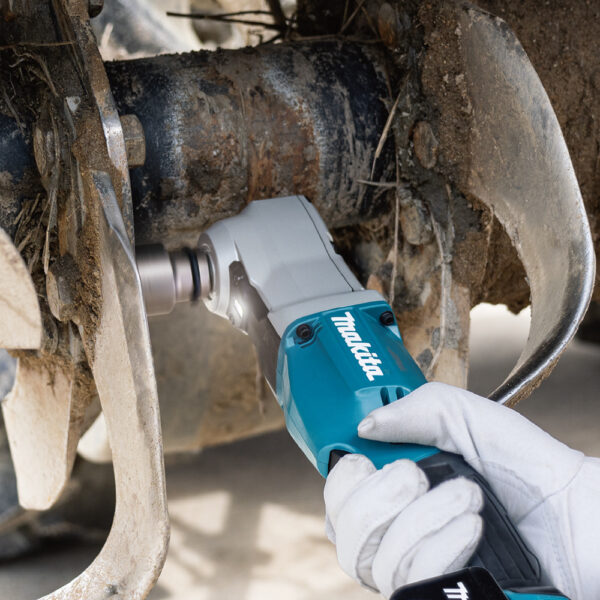

  • Access in Confined Spaces: The slim, angled head is the primary benefit, allowing mechanics and technicians to work effectively in restricted areas such as engine bays or around machinery components, which would be impossible with a standard impact wrench.
  • Reduced User Fatigue: The tool is well-balanced, with the center of gravity moved closer to the switch to minimize strain on the user’s arm during prolonged use. The ergonomic, soft grip handle further enhances comfort.
  • Precision and Control: The three-stage power selection and variable speed trigger allow users to match the torque and speed to the specific job, from delicate tasks to heavy-duty fastening, reducing the risk of damaging materials or fasteners. The auto-stop system adds an extra layer of precision and safety.

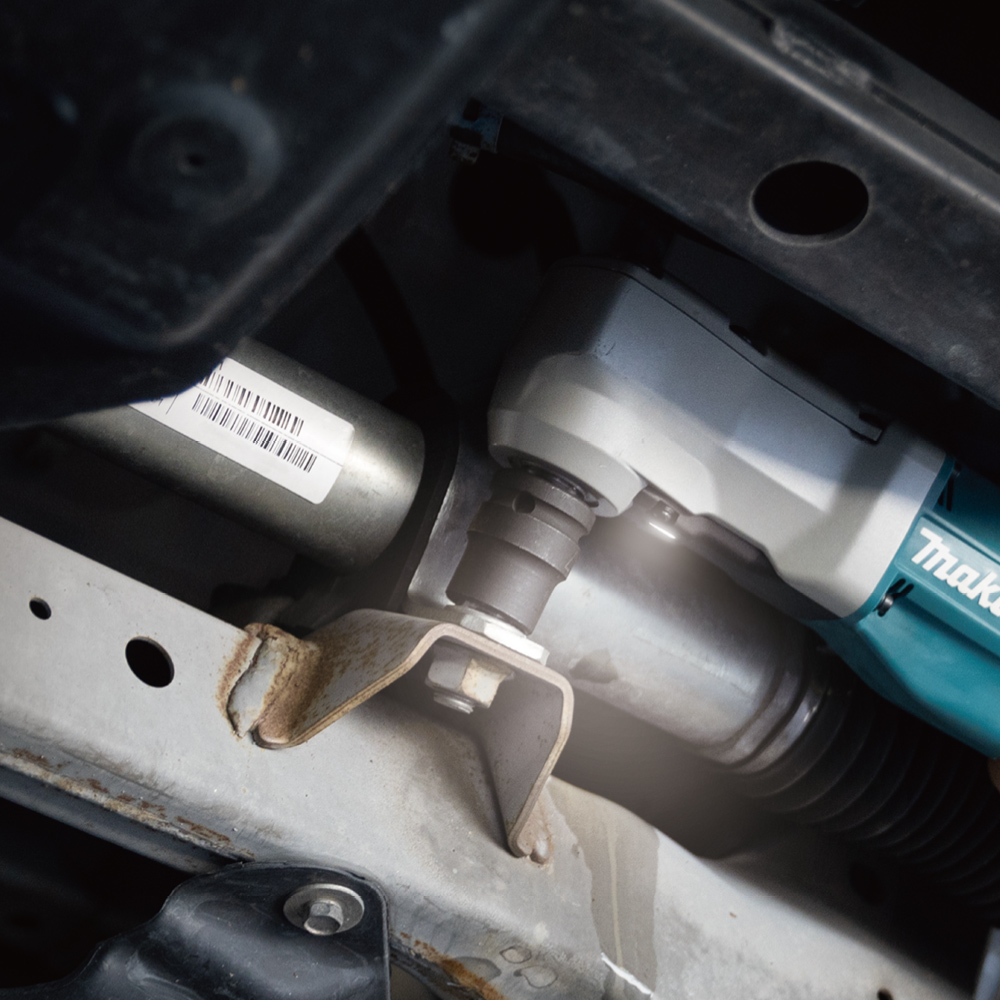

  • Illuminated Work Area: The integrated, three-stage adjustable LED job light ensures visibility when working in dark or poorly lit conditions, improving accuracy and safety.
  • Cordless Convenience: Being part of the 18V LXT platform provides cordless mobility, eliminating the hassle of cords or air hoses and allowing the tool to be used in remote locations or tight spaces without an external power source.

Additional information

Capacity

Standard Bolt: M10 – M20 / High Strength Bolt: M10 – M16

Dimensions (L x W x H)

396 – 414 x 80 x 86 – 92 mm

Head Height

81.0 mm (3-3/16")

Impacts per minute

Hard / Med. / Soft: 0 – 4, 000 / 0 – 2, 800 / 0 – 1, 800 min-1

Max Fastening Torque

310 – 340 N?m

Net weight

1.42 kg (without battery)

NO LOAD SPEED

Hard / Med. / Soft: 0 – 3, 200 / 0 – 1, 500 / 0 – 1, 000 min-1

NUT-BUSTING TORQUE

500 – 530 N?m

Square Drive

12.7 mm (1/2")
