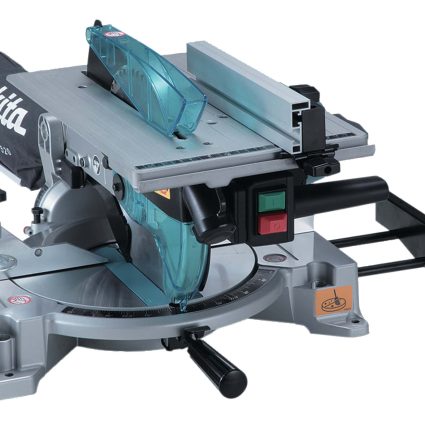

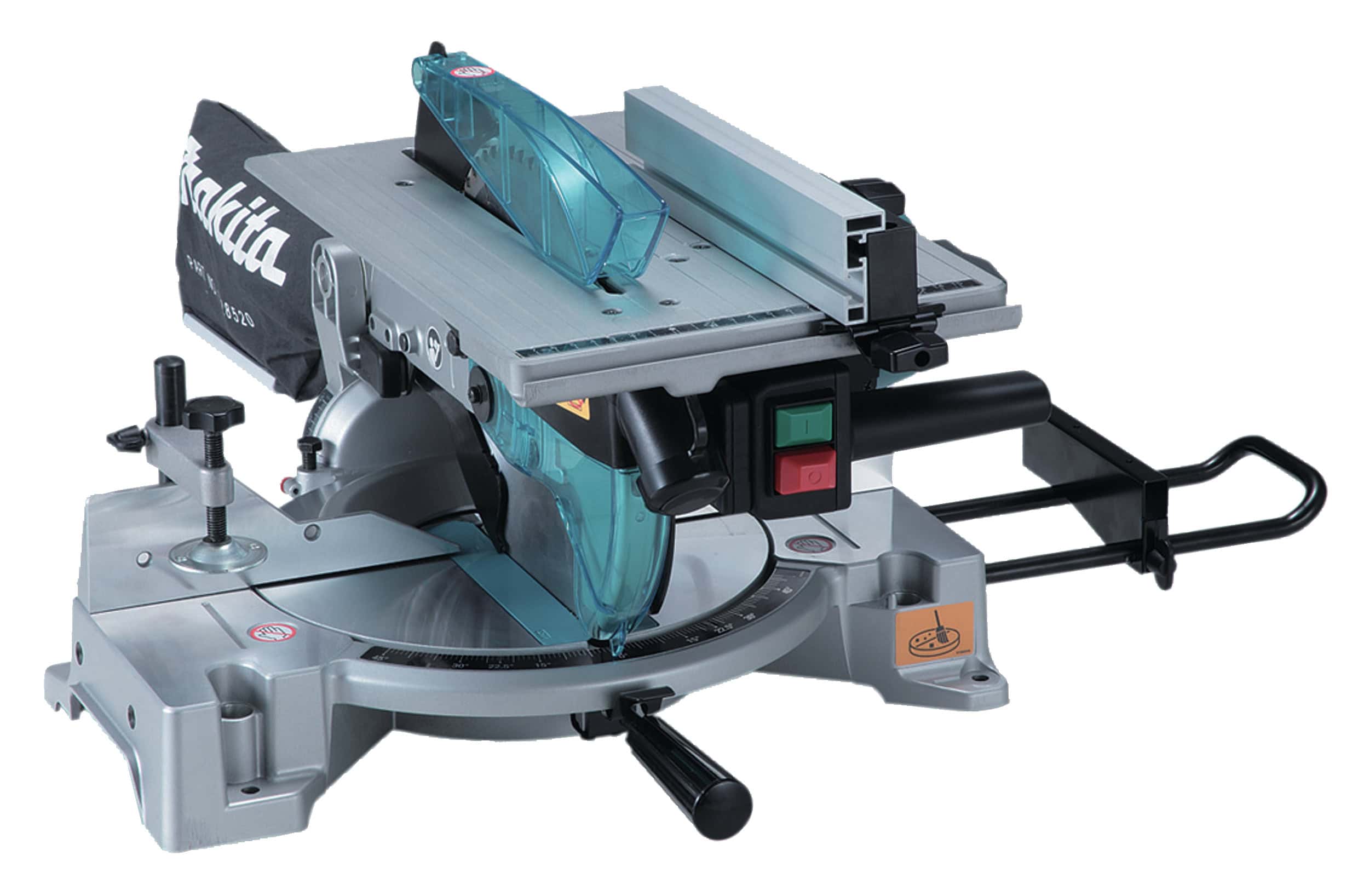

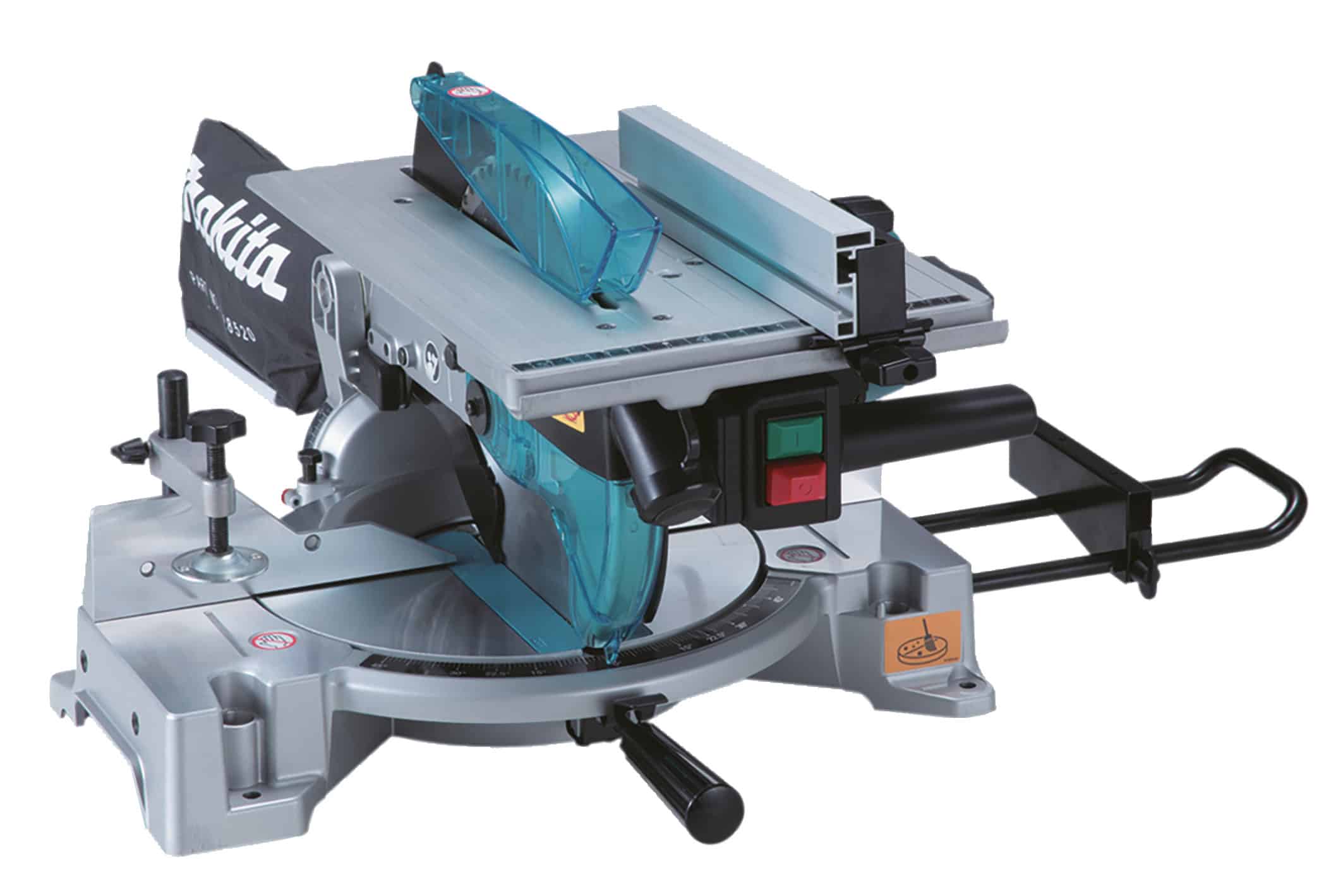

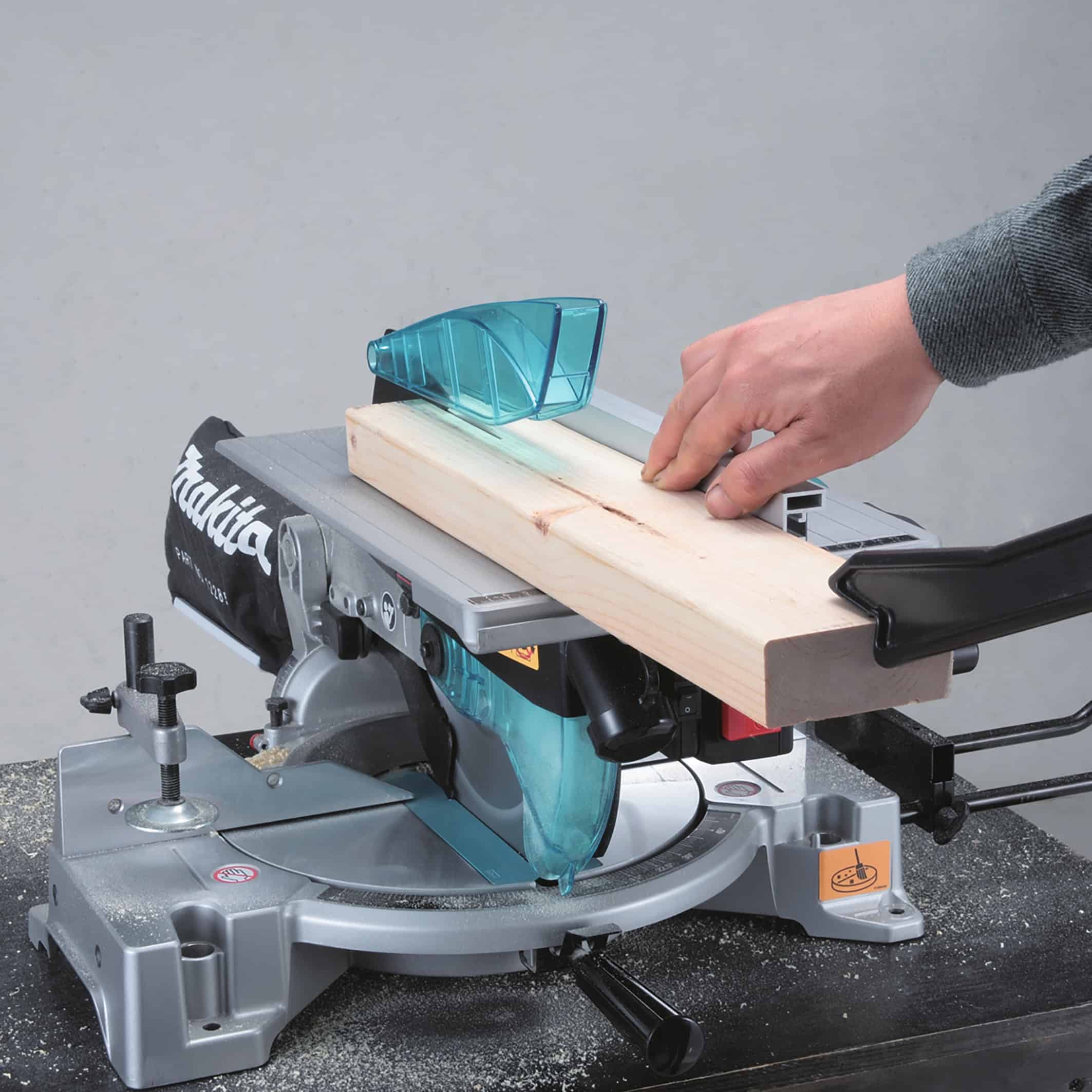

LH1040 – Table Mitre Saw

SKU: LH1040

United States dollar ($) - USD

United States dollar ($) - USD
Euro (€) - EUR
Armenian dram (AMD) - AMD

Product information

BLADE: 260 x 30 mm
NO LOAD SPEED: 4800 min??
NOISE UNCERTAINTY (K FACTOR): 3 dB(A)
POWER SUPPLY CORD: 2, 5 m
PRODUCT DIMENSIONS (L X W X H):: 530 x 476 x 535 mm
PUSH STICK: Yes
SET PLATE: 1

Details...

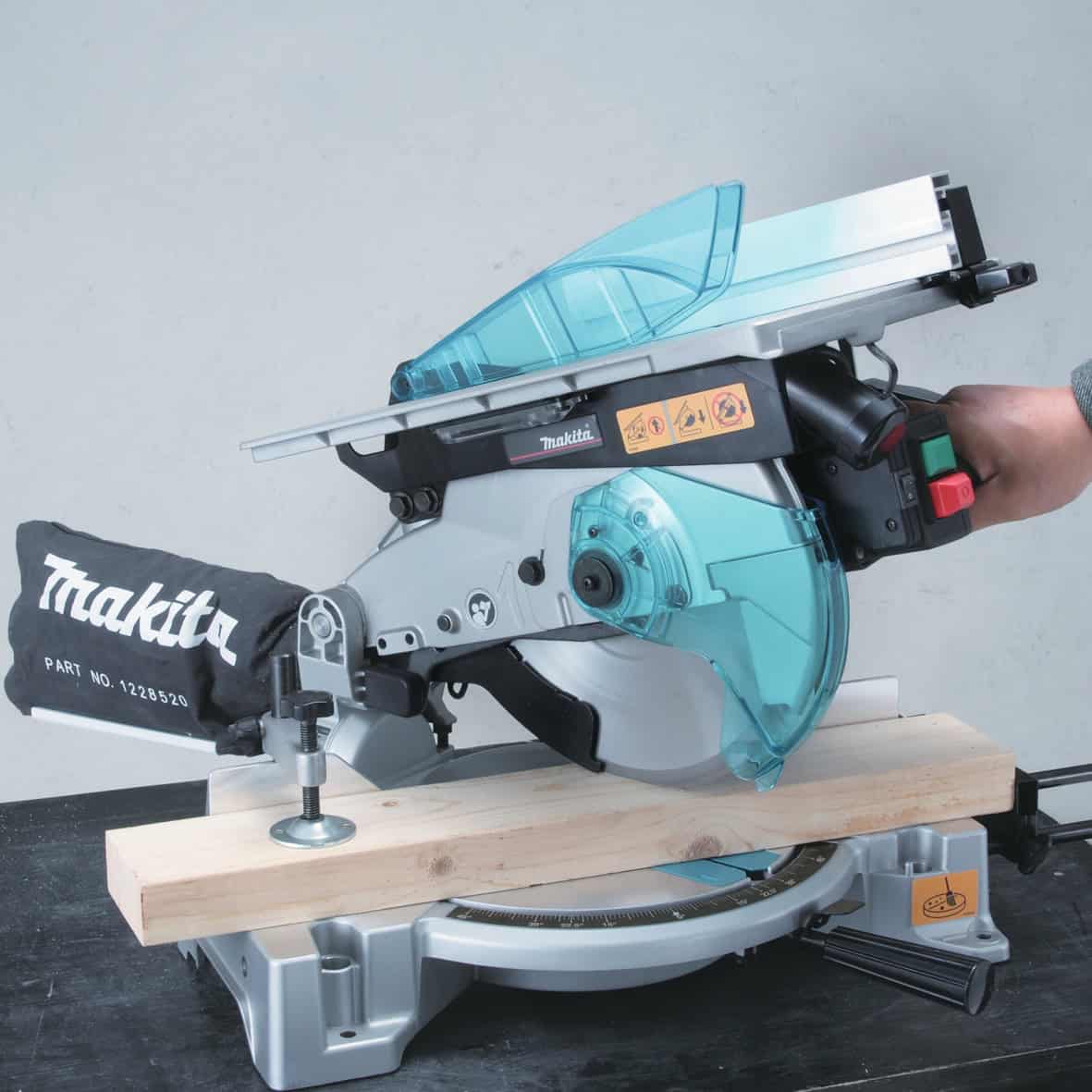

Easy to change from mitre saw to table saw

Category: Saws

Description

Product Description

A compact flip-over saw with a powerful 1 650 W motor, 260 mm blade and high sawing capacity. Easy to change from a table saw to a mitre saw. Its versatility makes this tool an ideal choice for construction sites.

User Benefits

Anti-restart switch protects user from accidental start
Dust bag for a cleaner work environment
Electric brake for maximum productivity and increased operator safety
Lightweight for easy transport to job sites
Miter saw and table saw packed in one tool for great versatility
Powerful motor allows easy rip cutting

Additional information

BLADE	260 x 30 mm
NO LOAD SPEED	4800 min??
NOISE UNCERTAINTY (K FACTOR)	3 dB(A)
POWER SUPPLY CORD	2, 5 m
PRODUCT DIMENSIONS (L X W X H):	530 x 476 x 535 mm
PUSH STICK	Yes
SET PLATE	1
SOUND POWER LEVEL (LWA)	107 dB(A)
SOUND PRESSURE LEVEL (LPA)	93 dB(A)
VIBRATION LEVEL (3 AXES)	? 2, 5 m/s?
VIBRATION UNCERTAINTY (K FACTOR)	1, 5 m/s?
CAPACIITY 45?	69 x 85 mm
WEIGHT WITHOUT CABLE (EPTA-PROCEDURE 01/2003)	14, 3 kg
CAPACITY 45? LEFT	53 x 95 / 35 x 130 mm
CAPACITY 90?	69 x 130 mm
DUST BAG	Yes
EAN	88381057424
MAX. BEVEL RANGE (LEFT)	45 / 0 ?
MAX. MITRE RANGE (LEFT)	45 / 45 ?
MAXIMUM OUTPUT POWER	1650 W

Reviews

There are no reviews yet.

Be the first to review “LH1040 – Table Mitre Saw”

Compare products

Show only difference

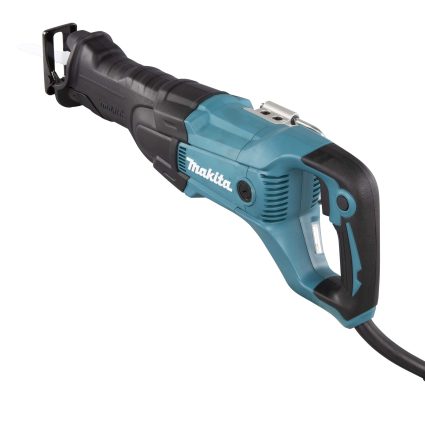

Clear	Remove Lh1040 - table mitre saw Read more	Remove Jr3061t - reciprocating saw ac Read more	Remove Sp6000 - circular saw Read more	Remove Sj401 - scroll saw Read more	Remove N5900b - circular saw Read more
