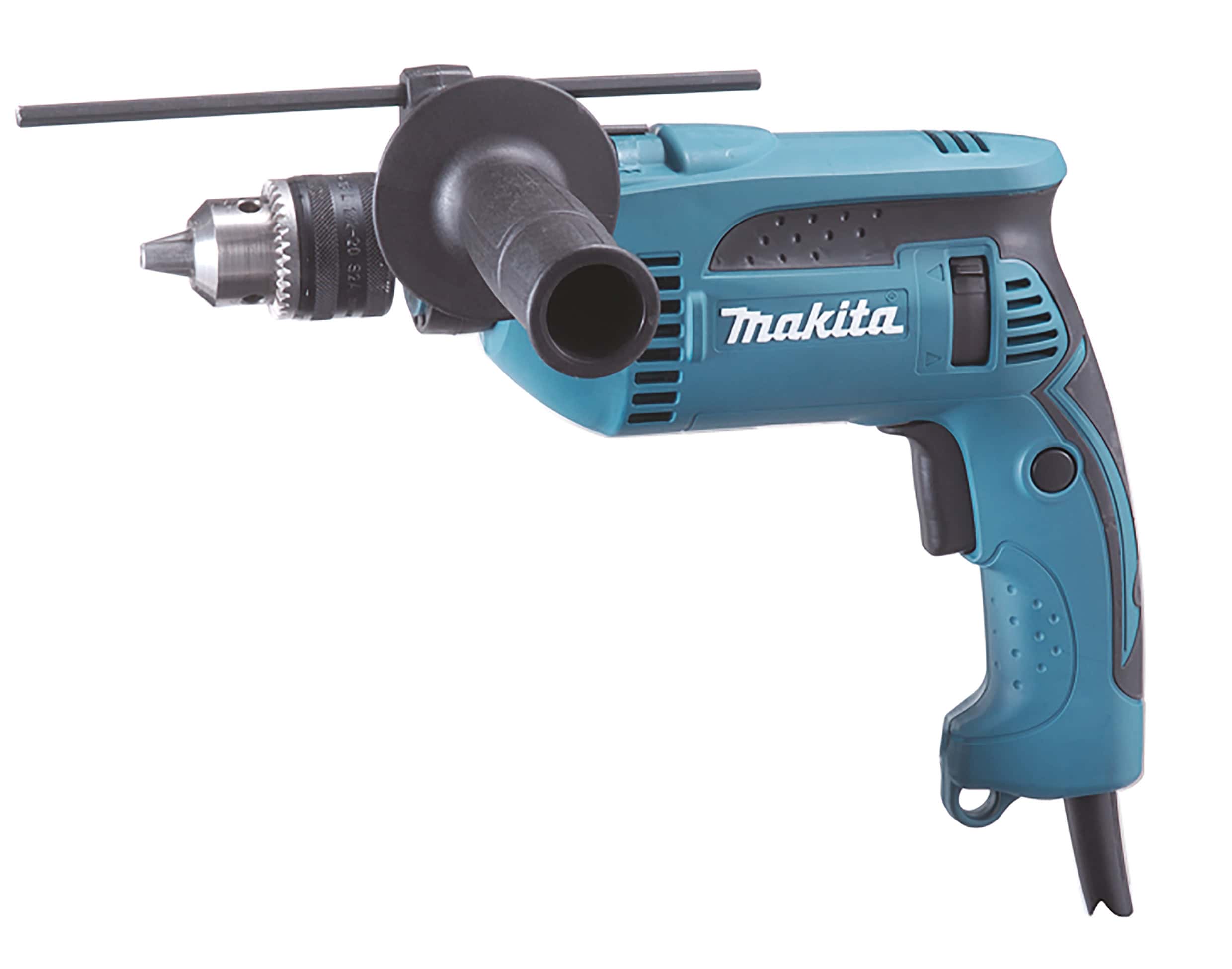

HP1640K - Impact Drill

HP1640K – Impact Drill

SKU: HP1640K
United States dollar ($) - USD
  • United States dollar ($) - USD
  • Euro (€) - EUR
  • Armenian dram (AMD) - AMD

Product information

  • COLLAR CLAMPING DIAMETER: 43 mm
  • PLASTIC CARRYING CASE: Yes
  • POWER SUPPLY CORD: 2, 0 m
  • PRODUCT DIMENSIONS (L X W X H):: 303 x 72 x 222 mm
  • SIDE GRIP: Yes
  • SOUND POWER LEVEL (LWA): 103 dB(A)
  • SOUND PRESSURE LEVEL (LPA): 92 dB(A)
Details...

Compact drill with hammer and drive functions

Categories: ,

Description

Product Description

Compact 680 W percussion drill with a masonry drilling capacity of 16 mm. A slimline frame and large switch for added usability. With rugged aluminium housing for gear drive. 13 mm quick action drill chuck. Comes in a case.

User Benefits

  • Double insulated
  • Drill with drilling and impact drilling
  • Rubberized soft grip for more comfort and control
  • Same speed and torque in both directions with reverse gear.
  • Variable speed control dial enables user to match the speed to the application

Additional information

COLLAR CLAMPING DIAMETER

43 mm
PLASTIC CARRYING CASE

Yes
POWER SUPPLY CORD

2, 0 m
PRODUCT DIMENSIONS (L X W X H):

303 x 72 x 222 mm
SIDE GRIP

Yes
SOUND POWER LEVEL (LWA)

103 dB(A)
SOUND PRESSURE LEVEL (LPA)

92 dB(A)
VIBRATION LEVEL (3 AXES)

? 2, 5 m/s?
VIBRATION LEVEL (3 AXES), IMPACT DRILLING

19 m/s?
VIBRATION UNCERTAINTY (K FACTOR)

2, 0 m/s?
WEIGHT WITHOUT CABLE (EPTA-PROCEDURE 01/2003)

2, 0 kg
DRILL CHUCK CAPACITY

1, 5 – 13 mm
IMPACT

0 – 44 800 min??
MAX. DRILLING DIAMETER IN CONCRETE

16 mm
MAX. DRILLING DIAMETER IN STEEL

13 mm
MAX. DRILLING DIAMETER IN WOOD

30 mm
MAXIMUM OUTPUT POWER

680 W
NO LOAD SPEED

0 – 2800 min??
NOISE UNCERTAINTY (K FACTOR)

3 dB(A)

Compare products

Show only difference
Clear
RemoveMakitaHp1640k - impact drillRead more
Remove6010b - drillRead more
RemoveHp1631k - impact drillRead more
RemoveDhp484z - combi drill lxt?Read more
RemoveDda460zk - angle drill lxt?Read more
Ratingn/an/an/an/an/a
Pricen/an/an/an/an/a
Weight (kg)n/an/an/an/an/a
Dimensions (cm)-----
COLLAR CLAMPING DIAMETER43 mm43 mm---
PLASTIC CARRYING CASEYesYes---
POWER SUPPLY CORD2 | 0 m2 | 5 m2 | 0 m--
PRODUCT DIMENSIONS (L X W X H):303 x 72 x 222 mm296 x 75 x 204 mm182 x 79 x 261 mm538 x 128 x 223 mm-
SIDE GRIPYesYesYes--
SOUND POWER LEVEL (LWA)103 dB(A)108 dB(A)99 dB(A)--
SOUND PRESSURE LEVEL (LPA)92 dB(A)97 dB(A)88 dB(A)85 dB(A)-
VIBRATION LEVEL (3 AXES)? 2 | 5 m/s?? 2 | 5 m/s?---
VIBRATION LEVEL (3 AXES), IMPACT DRILLING19 m/s?17 m/s?8 | 0 m/s?--
VIBRATION UNCERTAINTY (K FACTOR)2 | 0 m/s?1 | 5 m/s?1 | 5 m/s?1 | 5 m/s?-
WEIGHT WITHOUT CABLE (EPTA-PROCEDURE 01/2003)2 | 0 kg1 | 5 kg1 | 9 kg--
DRILL CHUCK CAPACITY1 | 5 - 13 mm1 | 5 - 13 mm1 | 5 - 13 mm1 | 5 - 13 mm-
IMPACT0 - 44 800 min??0 - 48 000 min??0 - 7500 / 30 000 min??--
MAX. DRILLING DIAMETER IN CONCRETE16 mm16 mm---
MAX. DRILLING DIAMETER IN STEEL13 mm10 mm13 mm13 mm13 mm
MAX. DRILLING DIAMETER IN WOOD30 mm15 mm30 mm38 mm118 mm
MAXIMUM OUTPUT POWER680 W305 W710 W--
NO LOAD SPEED0 - 2800 min??1800 min??0 - 3200 min??0 - 500 / 2000 min??0 - 350 / 1400 min??
NOISE UNCERTAINTY (K FACTOR)3 dB(A)3 dB(A)3 dB(A)3 dB(A)-
Battery Chemistry (Ni-Cd / Ni-MH / Li-ion)Li-ionLi-ion---
MAX. FASTENING TORQUE HARD/SOFT54 / 30 Nm- / 136 Nm---
NOMINAL BATTERY VOLTAGE18 V2 x 18 V---
TOOL WEIGHT WITH BATTERY (EPTA)1 | 6 - 1 | 9 kg5 | 7 - 6 | 4 kg---
BATTERY PROTECTIONYesYes---
VIBRATION LEVEL (3 AXES), DRILLING? 2 | 5 m/s?? 2 | 5 m/s?---
VOLTAGE LXTYesYes---
BRUSHLESS MOTORYesYes---
CLUTCH TORQUE SETTING21----
DRIVING SHANK1/2"-20UNF "1/2"-20UNF "---
EAN88381826105----
MAX. DRILLING DIAMETER IN MASONRY13 mm----
ANGLE LENGTH133 mm----
