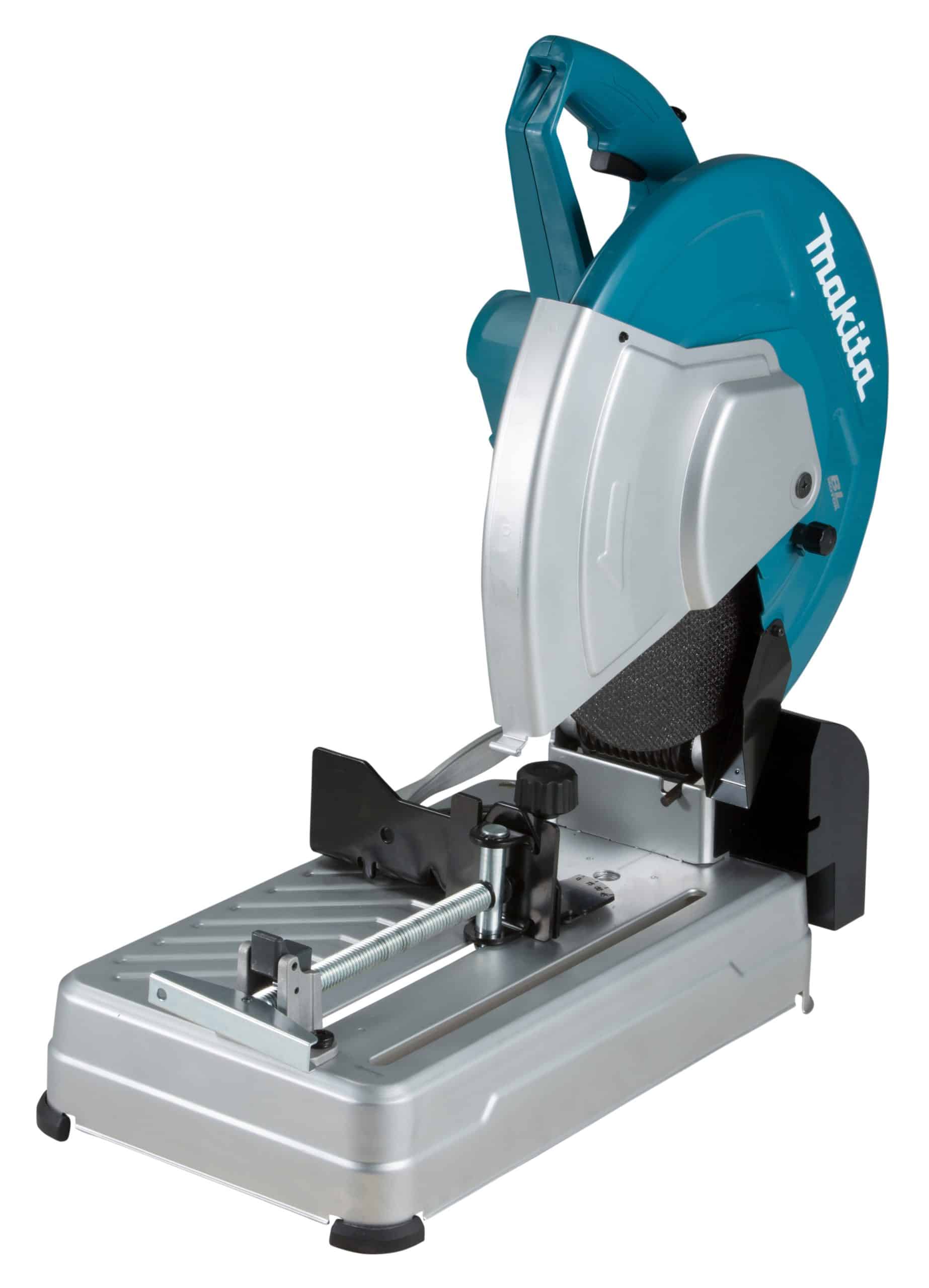

Cut-off saw for safe, spark-free metal cutting
A powerful cut-off saw for accurate, safe and quick cutting of metal. A high 18V+18V voltage is achieved with two 18V LXT batteries. A carry handle for easy transport and a spark guide for added safety. An adjustable cutting depth and material clamp improve user convenience. Tool only, battery and charger not included.
| BATTERY PROTECTION | Yes |
|---|---|
| PRODUCT DIMENSIONS (L X W X H): | 537 x 290 x 640 mm |
| SOUND POWER LEVEL (LWA) | 115 dB(A) |
| SOUND PRESSURE LEVEL (LPA) | 103 dB(A) |
| TOOL WEIGHT WITH BATTERY (EPTA) | 17, 2 – 17, 8 kg |
| VIBRATION LEVEL (3 AXES) | ? 2, 5 m/s? |
| VIBRATION UNCERTAINTY (K FACTOR) | 1, 5 m/s? |
| VOLTAGE LXT | Yes |
| BLADE | 355 x 25, 4 mm |
| BRUSHLESS MOTOR | Yes |
| CUTTING CAPACITY MILD STEEL (UP TO 400N/MM?) | 102 x 194 mm |
| EAN | 88381869591 |
| MAX. LOG DIAMETER | 127 mm |
| NO LOAD SPEED | 3800 min?? |
| NOISE UNCERTAINTY (K FACTOR) | 3 dB(A) |
| NOMINAL BATTERY VOLTAGE | 2 x 18 V |
| Clear | |||||
|---|---|---|---|---|---|
| Rating | n/a | n/a | n/a | n/a | n/a |
| Price | n/a | n/a | n/a | n/a | n/a |
| Weight (kg) | n/a | n/a | n/a | n/a | n/a |
| Dimensions (cm) | - | - | - | - | - |
| BATTERY PROTECTION | Yes | Yes | Yes | Yes | - |
| PRODUCT DIMENSIONS (L X W X H): | 537 x 290 x 640 mm | 170 x 81 x 276 mm | 266 x 82 x 290 mm | 144 x 81 x 246 mm | 229 x 91 x 289 mm |
| SOUND POWER LEVEL (LWA) | 115 dB(A) | 105 dB(A) | 105 dB(A) | 108 dB(A) | 109 dB(A) |
| SOUND PRESSURE LEVEL (LPA) | 103 dB(A) | 94 dB(A) | 94 dB(A) | 97 dB(A) | 98 dB(A) |
| TOOL WEIGHT WITH BATTERY (EPTA) | 17 | 2 - 17 | 8 kg | 2 | 3 - 2 | 7 kg | 3 | 1 - 3 | 4 kg | 1 | 5 - 1 | 8 kg | 3 | 4 - 3 | 7 kg |
| VIBRATION LEVEL (3 AXES) | ? 2 | 5 m/s? | - | - | - | - |
| VIBRATION UNCERTAINTY (K FACTOR) | 1 | 5 m/s? | 2 | 0 m/s? | 1 | 5 m/s? | 1 | 5 m/s? | 2 | 0 m/s? |
| VOLTAGE LXT | Yes | Yes | Yes | Yes | Yes |
| BLADE | 355 x 25 | 4 mm | - | - | - | - |
| BRUSHLESS MOTOR | Yes | Yes | Yes | Yes | - |
| CUTTING CAPACITY MILD STEEL (UP TO 400N/MM?) | 102 x 194 mm | - | - | - | - |
| EAN | 88381869591 | - | - | - | - |
| MAX. LOG DIAMETER | 127 mm | - | - | - | - |
| NO LOAD SPEED | 3800 min?? | 0 - 500 / 1200 / 1900 / 2200 min?? | 1600 min?? | 0 - 1000 / 1800 / 2600 / 3200 min?? | 0 - 900 / 1000 / 1800 min?? |
| NOISE UNCERTAINTY (K FACTOR) | 3 dB(A) | 3 dB(A) | 3 dB(A) | 3 dB(A) | 3 dB(A) |
| NOMINAL BATTERY VOLTAGE | 2 x 18 V | 18 V | 18 V | 18 V | 18 V |
| PRODUCT WEIGHT | 2 | 70 kg | - | - | - | - |
| TIGHTENING CAPACITY HIGH TENSILE BOLT | M10 - M16 | M12 - M16 | M10 - M16 | M10 - M24 | - |
| TIGHTENING CAPACITY STANDARD BOLT | M10 - M24 | M12 - M22 | M10 - M20 | M12 - M30 | - |
| VIBRATION LEVEL (3 AXES), FASTENING BOLT | 19 | 0 m/s? | 19 | 0 m/s? | 12 | 5 m/s? | 15 | 5 m/s? | - |
| DRIVE SQUARE | 1/2 " | 1/2 " | 1/2 " | 3/4 " | - |
| IMPACT | 0 - 1000 / 1700 / 2400 / 2700 min?? | 2200 min?? | 0 - 1800 / 2600 / 3400 / 4000 min?? | 0 - 1800 / 2000 / 2200 min?? | - |
| MAX FASTENING TORGUE IMPACT DRILL | 150 / 200 / 320 / 700 Nm | 440 Nm | 100 / 160 / 210 / 330 Nm | 300 / 600 / 1050 Nm | - |
| NUT-BUSTING TORQUE | 1000 Nm | 580 Nm | 1700 Nm | - | - |
