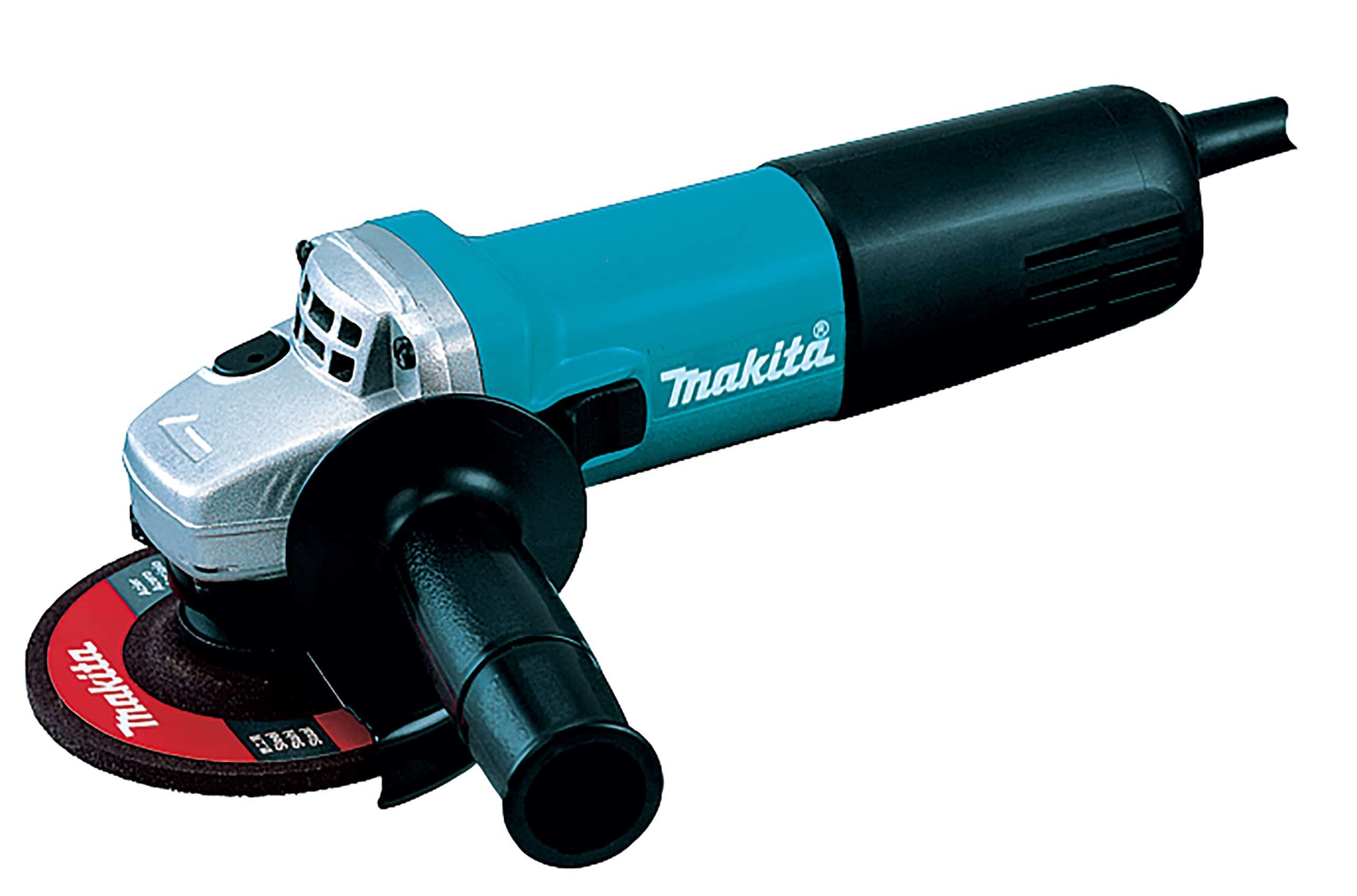

9557HN – Angle Grinder

SKU: 9557HN

United States dollar ($) - USD

United States dollar ($) - USD
Euro (€) - EUR
Armenian dram (AMD) - AMD

Product information

ANTI-RESTART FUNCTION (NVR SWITCH): Yes
SOUND POWER LEVEL (LWA): 97 dB(A)
SOUND PRESSURE LEVEL (LPA): 86 dB(A)
VIBRATION LEVEL (3 AXES): 7, 5 m/s?
VIBRATION UNCERTAINTY (K FACTOR): 1, 5 m/s?
WEIGHT WITHOUT CABLE (EPTA-PROCEDURE 01/2003): 1, 7 – 2, 2 kg
BORE (B): 22, 23 mm

Details...

Compact tool with slide switch for cutting and grinding

Categories: Angle Grinder, Angle Grinder

Description

Product Description

A small angle grinder with 840 W motor and 115 mm wheel. Labyrinth channel construction protects the armature and the field coil from impurities in the cooling air. Equipped with a slide switch.

User Benefits

Compact design with small diameter barrel and lightweight for added comfort
Double insulated
Labyrinth construction seals and protects the drive gear and bearings from contamination for longer tool life
Protective zig-zag varnish seals the armature from dust and debris for longer tool life
Push button spindle lock for operator convenience
Reliable machined gears provide twice or more longer service life
Slide switch with lock-on for continuous use

Additional information

ANTI-RESTART FUNCTION (NVR SWITCH)	Yes
SOUND POWER LEVEL (LWA)	97 dB(A)
SOUND PRESSURE LEVEL (LPA)	86 dB(A)
VIBRATION LEVEL (3 AXES)	7, 5 m/s?
VIBRATION UNCERTAINTY (K FACTOR)	1, 5 m/s?
WEIGHT WITHOUT CABLE (EPTA-PROCEDURE 01/2003)	1, 7 – 2, 2 kg
BORE (B)	22, 23 mm
GRINDING DISC DIAMETER	115 mm
MAXIMUM OUTPUT POWER	840 W
NO LOAD SPEED	11 000 min??
NOISE UNCERTAINTY (K FACTOR)	3 dB(A)
POWER SUPPLY CORD	2.5 m
PRODUCT DIMENSIONS (L X W X H):	271 x 130 x 106 mm
PRODUCT WEIGHT	2, 20 kg

Reviews

There are no reviews yet.

Be the first to review “9557HN – Angle Grinder”

Compare products

Show only difference

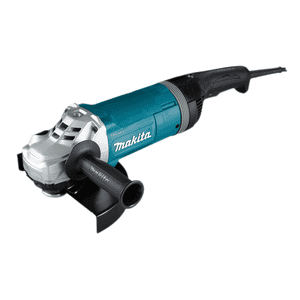

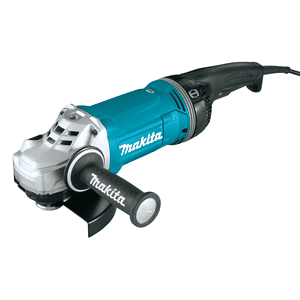

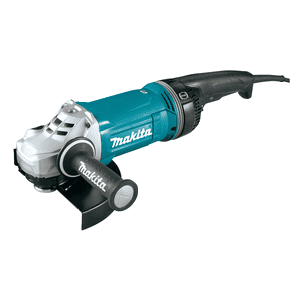

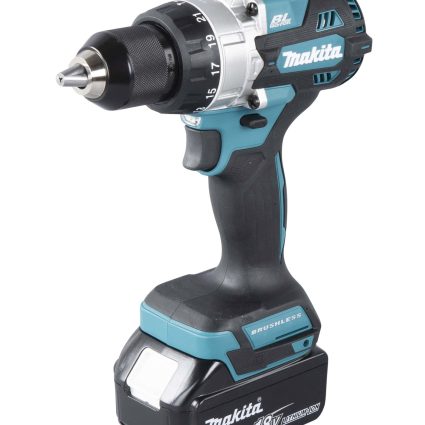

Clear	Remove 9557hn - angle grinder Read more	Remove Dhp486 - cordless percussion driver drill Read more	Remove Ga9070 - angle grinder Read more	Remove Ga7070 - angle grinder Read more	Remove Ga9080 - angle grinder Read more
